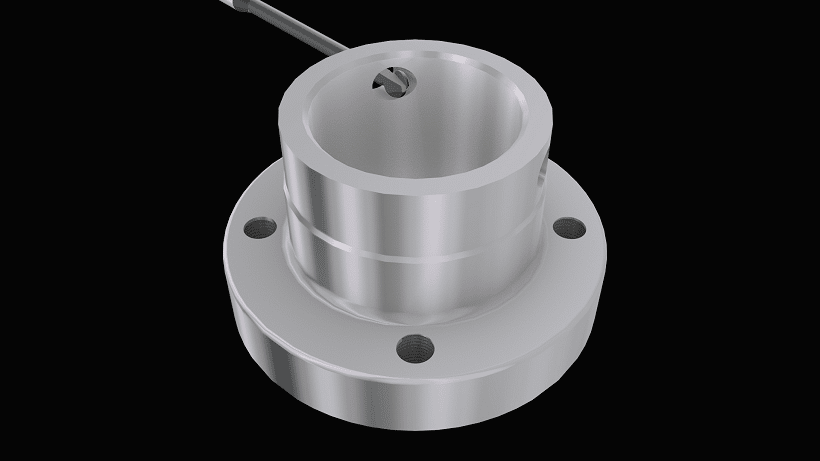

Flange (Mounting hole)
Before
| Tool |
Curved bearing scraper |
|---|---|
| Problem |
CNC deburring was not possible due to an off-centered edge. It was not possible to make a path data by users. Manual deburring was time-consuming because no scratch was allowed on a certain part of workpiece. |
After
| Tool | |
|---|---|
| Result |
Edge quality improved by CNC deburring. Defective products caused by scratches eliminated. |
Workpiece information
| Industry |
General Machinery |
|---|---|
| Part name |
Flange (Mounting hole) |
| Material type |
Aluminum |
| Cutting process |
Drilling |
Processing conditions
| Tool |
XEBEC Back Burr Cutter and Path (XC-38-A) |
|---|---|
| Details of processing |
Back deburring after drilling |
| Spindle speed (min⁻¹) |
6000 |
| Table feed (mm/min) |
900 |
| Machining time (sec) |
– |
